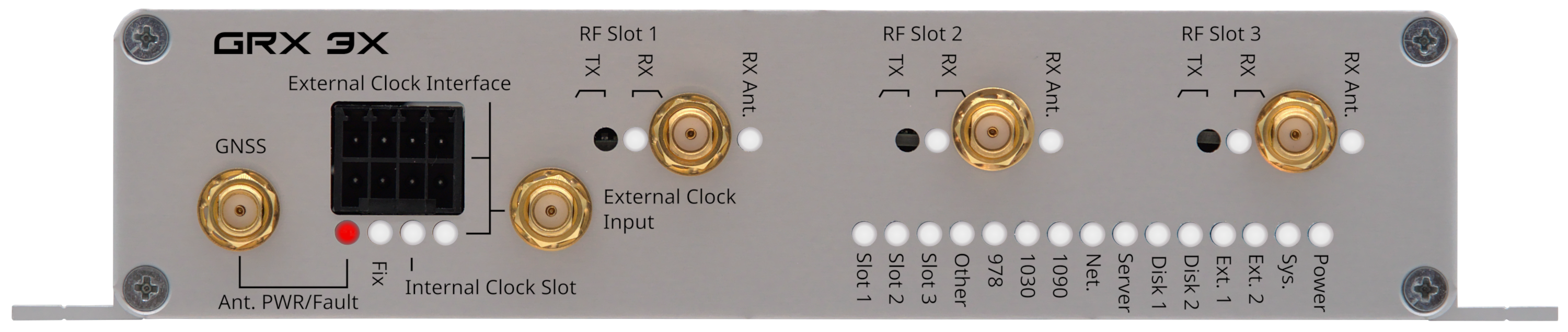

GRX3X
The GRX3X is a flexible multi-band receiver designed to support surveillance monitoring, spectrum monitoring, and advanced measurement applications in a single device. Its modular architecture allows up to three independent radio front-ends to operate simultaneously, enabling monitoring across multiple aviation frequency bands with one integrated sensor.
Designed for surveillance, research, spectrum monitoring, and advanced surveillance applications, the GRX3X supports simultaneous reception of all surveillance bands and the broader RF spectrum while providing access to raw signal data for advanced analysis. The platform’s configurable modular architecture allows customers to tailor the receiver to their specific surveillance, spectrum-monitoring, or experimental measurement requirements.
Key Features
- Monitor any three of 1090 MHz, 1030 MHz, 978 MHz, or custom bands with one device

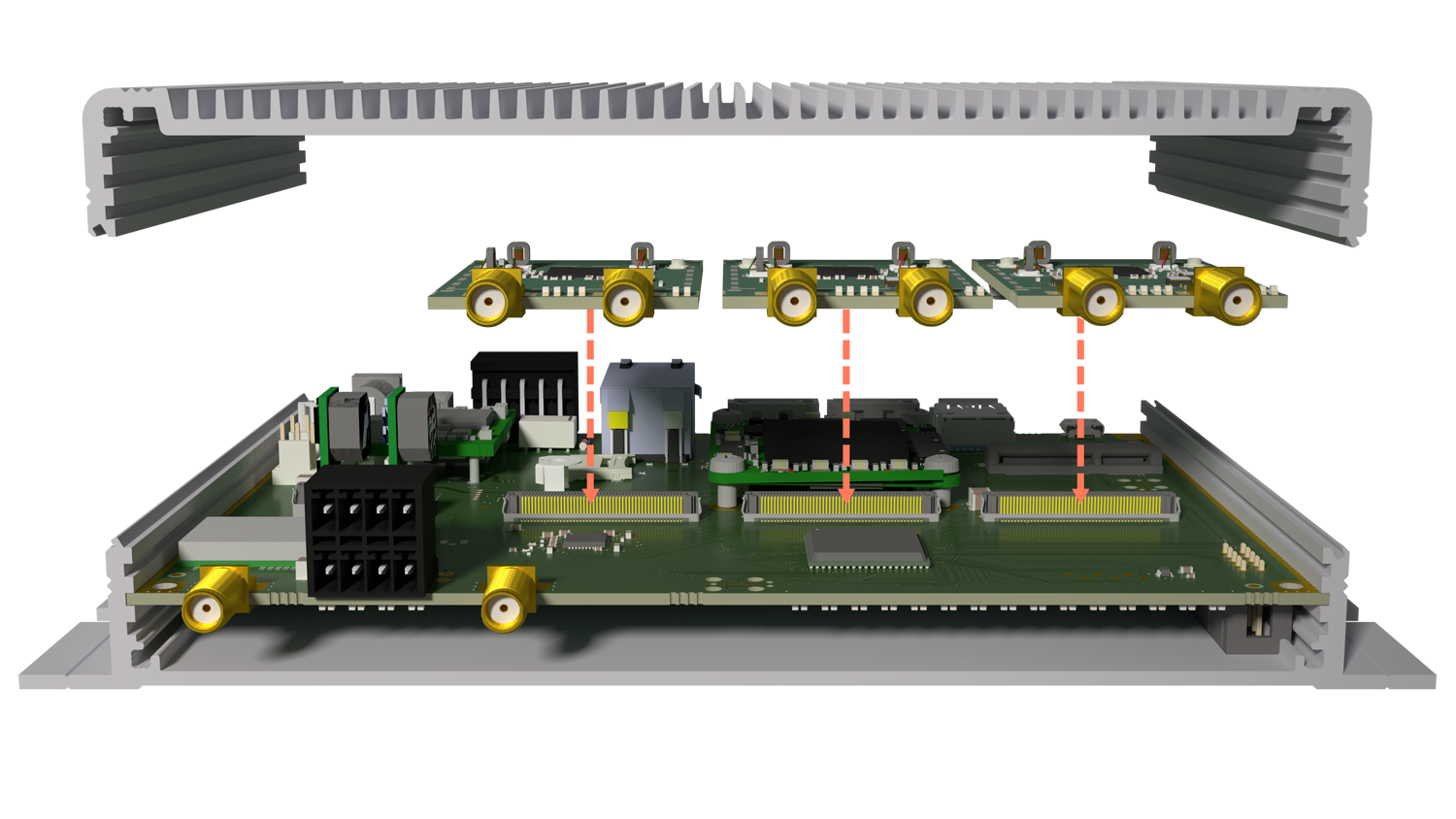

- Modular architecture with up to three daughterboard slots
- Simultaneous coverage of surveillance and spectrum-monitoring frequencies
- Configurations supporting up to six radio channels (two per daughterboard)
- ASTERIX support and gRPC-based language-independent API for seamless integration
- Access to raw I/Q signal data for analysis and research
- Standalone Linux-based system for low deployment footprints and high customizability
- Support for ADS-B (1090ES and UAT) and Mode S uplink/downlink monitoring
- Expandable design for custom monitoring and measurement applications
- Advanced signal detection features including DME, ATCRBS, and Mode 4/5
- Robust multi-constellation GNSS time synchronization and hold-over capabilities for multilateration in GPS-denied environments
