GRX Series
Our GRX receiver product line includes single-band and multi-band receivers that deliver Maximum Operational Performance through state-of-the-art technology.
GRX
At-a-Glance
The GRX family of receivers provides the sensor foundation for SeRo’s surveillance, RF spectrum, and GNSS monitoring solutions. Built on software-defined radio technology, GRX receivers capture aviation surveillance signals, GNSS L-band signals, and RF spectrum measurements with the precision required for monitoring and validation applications.
Applications and Operations
SecureTrack Support
Multilateration Support
Spectrum Monitoring
GNSS Monitoring
Standalone Device
Customizable Frequency Bands
Signal Decoding and Detection
Frequency Bands
ADS-B Decoding
Mode S Decoding
ATCRBS (SSR Mode 1, 2, 3/A, C) Decoding
DME Signal Detection
Military Signal Detection (Mode 4/5)
Signal Detection Statistics
1090 MHz + 1030 MHz + 978 MHz
1090ES + UAT
Downlink and Uplink
Downlink and Uplink
Downlink and Uplink
1090 MHz
1090ES
Downlink
Downlink
Downlink

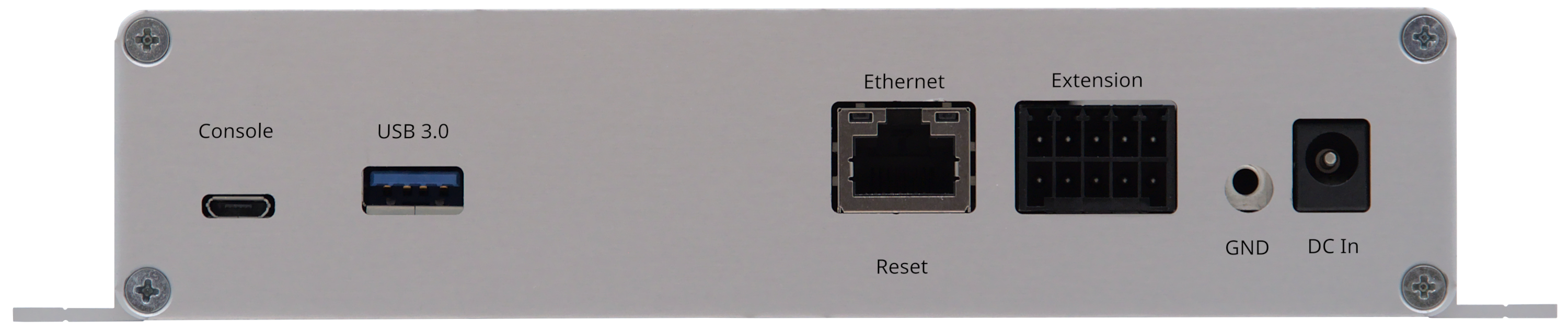

Interfaces and Extensibility
Debian Linux OS
Easy-to-use API (gRPC)
SSH Access
Web Configuration Interface
GNSS Synchronization
Gigabit Ethernet
USB Extension Port
External Hold-over Clock Support
General Purpose I/O Pins
SATA Interface for External Storage
Power over Ethernet
Yes (64-bit ARM)
Yes (3.0)
Yes (32-bit ARM)
Yes (2.0)
